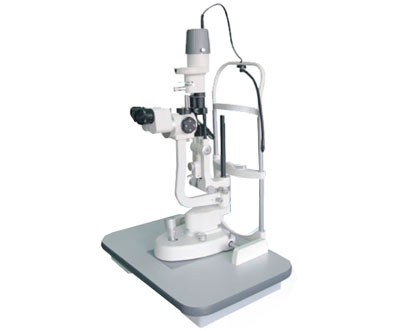

AS-400 5step
Detailed Product Description
The Galilean type microscope system adopts revolving drum,the highest magnification is 5 steps.
(Professional type)
The excellent optical system can give you a clear and clean image.
The 14mm aperture can help you observe the whole cornea and iris easily, and it is convenient to examine the foreign object.
The German imported 6V20W Osram halogen lamp can fully make use of every beam. It can make sure that you get the clean and clear image effect with the minimum illumination, at the same time can protect the patients eye.
The high eyepoint and open field eyepieces design can guarantee the clear image even when you wear glasses.
Total magnification Ratio 6×,10×, 16×, 25×,40× compatible.
Type: Galilean-Type
Magnification change Revolving Drum professional configuration
Eyepieces 12.5×
Angle between eyepieces : 13º
Pupillary adjustment 55mm~78mm
Diopter adjustment ±6D
Field of view 40× (Æ5.5mm), 25× (Æ8.5mm), 6× (Æ34.7mm)
Slit Illumination:
Slit width Continuously variable from 0 to 14mm at 14mm,slit becomes a circle
Slit length Continuously variable from 1mm to 14mm
Lamp 6V/20W Halogen Lamp
Slit angle 0º~180º (continuously adjustable both vertical and horizontal)
Slit inclination 4 step 5º10º15º20º
Filters Thermal safety,UV,Red-free,Cobalt Blue
Longitudinal movement 90mm Lateral movement 100mm Vertical movement 30mm Chin-Rest
