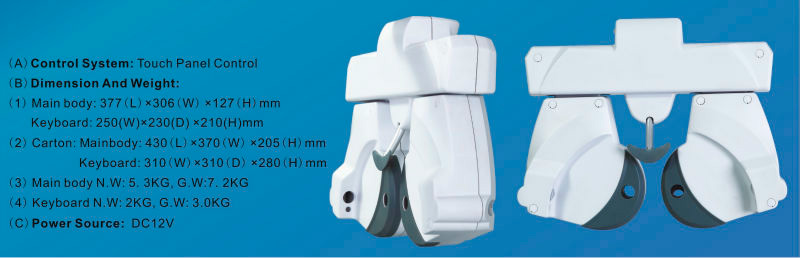

Auto Phoropter AV-600II
1. Sphere Range: +16.50 to -19.00 D (0.25 D steps)
2. Cylinder Range: 0.00 to -8.750 D (0.25D steps)
3. Cylinder axis: 0 to 180° (in 1° or 5° steps)
4. Cross Cylinder: ±0.25 D
5. Rotary Prisms: 0 to 20, (in 1 steps)
6. Auxiliary lens dial:
Occluder
Retinoscopic lens, +1.50D
Pin hole lens: 1mm
Madox: Right Eye(Red, Horizontal),Left Eye(Red, Vertical)
R/G Filter: Right Eye(Red), Left Eye(Green)
Polarizing Filter: Right Eye(135°,45°), Left Eye(45°,135°)
Split prism: Right Eye(6ΔBU), Left Eye(10ΔB1:up to 5Δ complement) PD check lens
Fixed cross cylinder: ±0.50D
