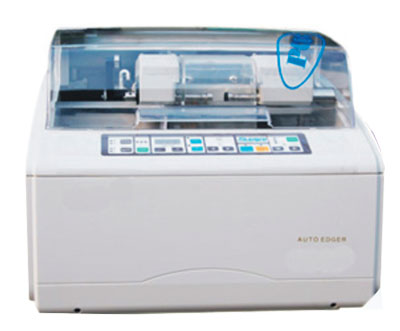

AL-500
Newly be equipped with PC wheel and automatically computerizes the transformation of the water spring. To be combined with excellence of all previous styles and obtainsspecial and original design. Four choices of two side board color.
Specification:
Diameter of processed lenses Min:22mm; Max:100mm
Grind clamp power 1.02-1.6 MP
Range of adjustable measurement -6.0mm~+6.0mm (scale: 0.05mm)
Dimension of figure 510（L）×490（W）×400（H）mm
Weight 49KG
Electrical source AC 220V±10％, 50Hz
Power 500W

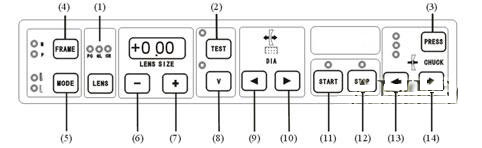

1. PC.GL.CR. lens selector
2. Test swtch
3. Chuck press selector
4. Frame selector
5. Bevelling and frameless selector
6. Minus (-) switch
7. Plus (+) switch
8. Re-edging switch
9. Shift (left) switch
10. Shift (right) switch
11. Start switch
12. stop switch
13. Lens-clamping switch
14. Lens-loosening switch
