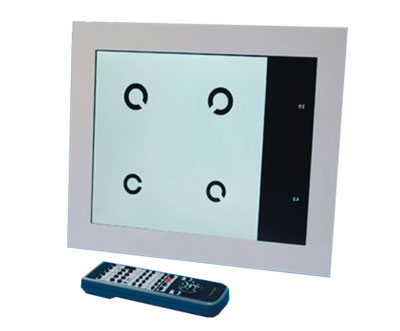

ARP-400 15inch LED Chart projector
ARP-400 15inch Vision Chart A new generation vision chart Including a wide range of test charts Precise test distance adjustment Clear and sharp screen display, the brightness reaches 160cd /(min)Possessed of red-green mask function, etc. Easy to upgrade by using a USB Disk Small size, east to install
Desktop and bracket installation are both available
The specification of our vision chart
Distance 2 M -7M (in steps of 0.5m)
Remote control battery AAA
Optotype E, C, Letter, Number, Children
Worth Test
Cross Grid
Stereo Test
Fixation point Test
Cross cylinder
Red Green Balance
Mask type Change of the background, Single mask, Horizontal mask, Visus unit 5-Grade, Decimal, LogMAR, Snellen(ft), Snellen (M)
Specification parameter
Power: Input: 110-230V AC +-10%, 50/60Hz
Output: 12V DC
Power consumption: 20 Watt(max)
Dimension: 395 mm×325 mm×38mm(L/W/H)
Packing dimision: 530 mm x520 mm x300mm (L/W/H)
Weight: 2.15KG
Working environment
Temperature: +5+40 Relative humidity: ≤80% Air pressure: 800hPa1060hPa
Storing environment
Temperature: 2055 Relative humidity: 1095 Air pressure: 700hPa1060hPa
Transport environment
Temperature: 2055 Relative humidity: 1095 Air pressure: 500hPa1060hPa
